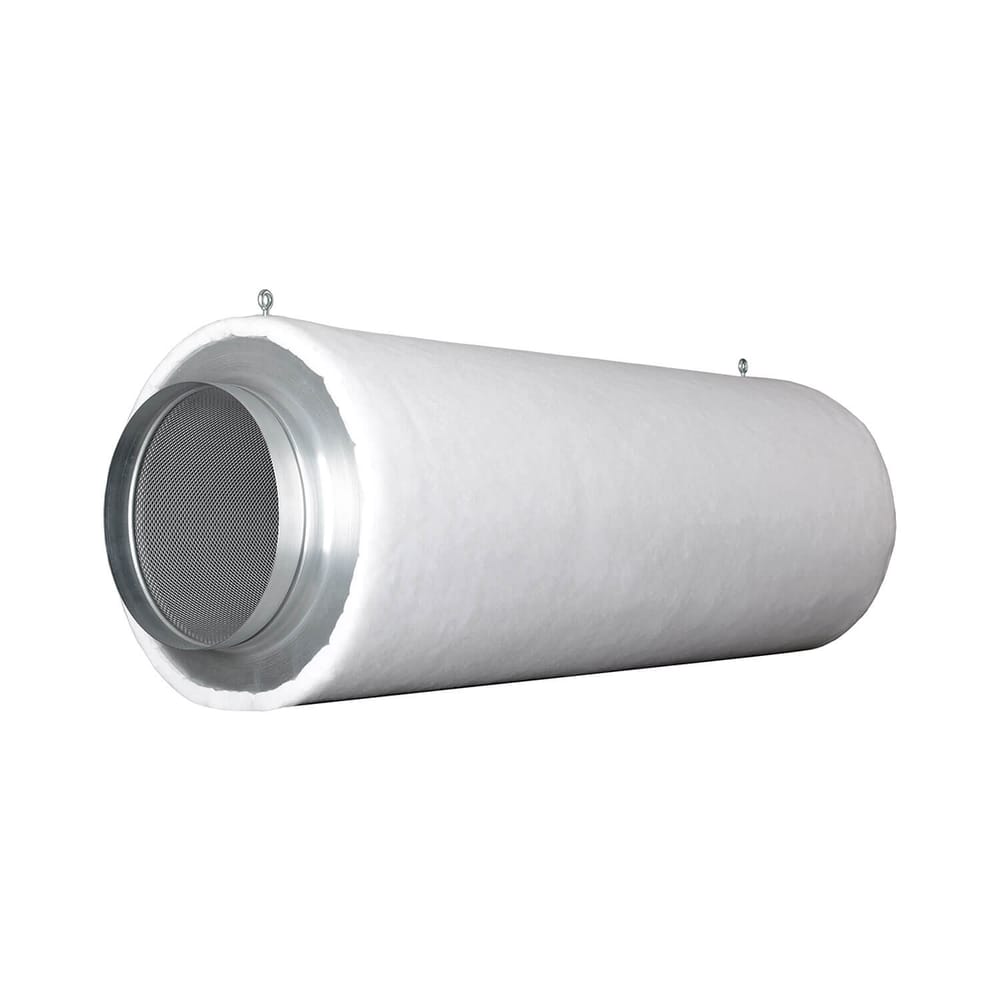

Prima Klima PK1610 Industry Carbon Filter200mm, 1650 m³/h
Industrial-grade 200mm carbon filter rated to 1650 m³/h, standing 800mm tall and weighing 13 kg.
Key Features
- Maximum airflow: 1650 m³/h
- Optimal airflow: 1150 m³/h for best odour control
- Flange diameter: 200mm - fits standard 200mm ducting
- Canister height: 800mm for extended carbon contact time
- Weight: 13 kg indicating substantial activated-carbon fill
- Prima Klima Industry Series - rated for continuous commercial duty
- Vertical or inline mount compatible with rated hanging straps
- Designed for large grow rooms requiring high-volume air scrubbing
The Prima Klima PK1610 is a professional-grade carbon filter built for large grow rooms and commercial cultivation spaces that push serious air volumes. If you are running a 200mm fan at high capacity, this is the filter that keeps pace without throttling your extraction system.
This filter suits grow rooms and indoor facilities where airflow demand exceeds what a standard domestic filter can handle. At an optimal airflow of 1150 m³/h, odour-laden air spends enough time inside the 800mm carbon bed to be thoroughly scrubbed. Pushing it to the 1650 m³/h maximum is possible, but sustained operation at optimal rate extends carbon life noticeably.
Pair this unit with a quality 200mm inline fan such as a high-static centrifugal model rated around 1000-1200 m³/h. Running the fan at its efficient mid-range keeps the filter in its sweet spot and avoids forcing air through the carbon too quickly. Mount the filter vertically where ceiling height allows; the 800mm canister is easier to hang on rated straps or a solid bracket than to floor-stand.
The 200mm flange connects directly to standard 200mm aluminium ducting. Keep duct runs short and avoid sharp bends to preserve static pressure. A short section of acoustic ducting between fan and filter reduces vibration noise transmission in large rooms where fan noise is a concern.
At 13 kg this filter requires two people to hang safely. Use rated ratchet straps and a fixed anchor point rated for dynamic load. Check the mounting point before committing the full weight. Replacing the filter every 12-18 months under continuous duty is typical; actual life depends on humidity, crop load, and airflow rate.
Grower’s Note: Carbon filters degrade faster in high-humidity environments. Keep relative humidity below 70% at the filter inlet. If your room regularly runs humid, fit a small pre-filter sleeve and inspect it monthly; a damp carbon bed loses adsorption capacity quickly and cannot be restored by drying alone.
Priced at £289, with free UK delivery.
- Maximum airflow: 1650 m³/h
- Optimal airflow: 1150 m³/h for best odour control
- Flange diameter: 200mm - fits standard 200mm ducting
- Canister height: 800mm for extended carbon contact time
- Weight: 13 kg indicating substantial activated-carbon fill
- Prima Klima Industry Series - rated for continuous commercial duty
- Vertical or inline mount compatible with rated hanging straps
- Designed for large grow rooms requiring high-volume air scrubbing
Dimensions
C: Height
800mm (2′ 7″)
Product Weight:
13kg
